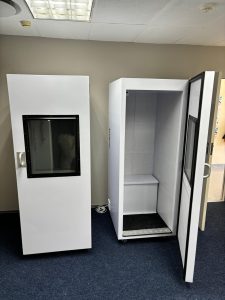

AVX 1 - Industrial Audiometric Booth
Precision in Silence - Built to last
The AVX1 Audiometric Booth is engineered and constructed to comply with all relevant SANS and ISO standards for screening audiometric enclosures. Each component is made from high-quality materials that meet strict requirements for acoustic performance and safety.
Materials and Panels
- Construction Standards: All panels are manufactured according to ISO 9001 standards.
- Core Material: High-density polyurethane or mineral wool is utilized, providing exceptional acoustic properties.
- Surface Finish: The inner and outer surfaces consist of powder-coated metal sheeting, ensuring durability.
- Fire Resistance: The booth meets fire resistance ratings in compliance with EN 13823 and SANS 10177 standards.
- Panel Specifications: Panels are constructed from 2mm powder-coated mild steel, incorporating five layers of sound-dampening materials for optimal acoustic insulation.
Guarantee
- The AVX1 Audiometric Booth comes with a 5-year structural guarantee, ensuring long-term reliability and performance.
MODELS
AVX1
EXTERNAL DIMENSION
Length: 975mm – Width: 745mm – Height: 1917mm
INTERNAL DIMENSIONS
Depth: 850mm- Width: 620mm – Height: 1720mm
MASS
Approximately 350kg
VIBRATION AND MOBILITY
Anti-vibration platform: Covered with thick carpet for sound absorption
Caster Wheels: Rubber-coated high-strengh industrial wheels for enhanced vibrration dampening
ROOF AND VENTILATION
Ventilation System: Acoustically designed attenuated maze and ultra-silent ventilation fan
DOOR FEATURES
Design: Stainless steel handle; opens 270 degrees outwards with three heavy-duty hinges
Sealing: Double 15mm magnetic compression seal
WINDOWS
Material: Two 6.3mm thick safety glass panels
Frame: Black structured powder-coated finish
Size: 500mm wide x 550 high
ELECTRICAL AND LIGHTING
Wiring: Alvex 1.5mm 2 core + E for all connections
Lead: 3m lead with a 3-pin ISA socket and plug
Lighting: Energy-saving 9w cool white strip light

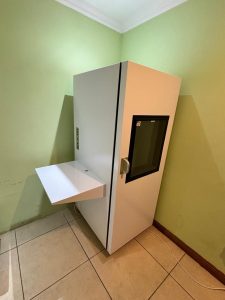

WORK PLATFORM (OPTIONAL)
Countertop: 600mm x 800mm countertop for positioning audiometric equipment
BOOTH CONNECTION SOCKETS
Audio Connections: Five sterio-connected jack plug sockets located near the work platform
SEATING
Chair: Comfortable built-in chair spanning the width of the booth
FINISH
Aesthetic: Structured white powder coating with a sleek black window frame
INSTALLATION
Mobility: Four ultra-heavy-duty rubber casters for easy transport
Installation: Fits through a standard-sized door; ready for use within minutes
| Accoustic Performance | Frequency (Hz) | Noise Reduction (dB) |
|---|---|---|
|
Attenuation |
Provides effective noise reduction, measured in accordance with SANS 10182 |
|
|
|
125 |
19.9 |
|
|
250 |
24.0 |
|
|
500 |
29.0 |
|
|
1000 |
41.1 |
|
|
2000 |
49.0 |
|
|
4000 |
55.5 |
|
|
8000 |
52.3 |
